BUGATTI


Ettore Arco Isadore Bugatti was born in 1881, the son of Milanese artists and was to become one of the world's greatest  and most innovative car manufacturers. Against family tradition he left art school at 17 to work in a bicycle factory: Prinetti and Stucchi in Milan. It was here that he built an early Bugatti prototype, a motorised tricycle.


  Ettore's first motor car was exhibited at the 1901 Milan motor show and was awarded the 'Grand Prix' by the French automobile clubs. Built by De Dietrich and bearing the De Dietrich-Bugatti brand name the car went into production in Germany and Ettore Bugatti moved to the Alsace.
After working for Mathis in 1905 and designing the Mathis type Hermes, Ettore Bugatti took him as a partner and formed his own company.
With five employees he brought out his first car in 1906, manufactured by Gasmotoren Fabrik Deutz in Cologne, it had a 4 cylinder engine
with overhead camshaft, a chain drive to the rear wheels, four gears and 50/60 hp.

In 1909, to produce the first 'Pur Sang' or thoroughbred Bugatti, Ettore opened his own factory in Molsheim. He built five cars the following year and in 1911 Ettore Bugatti's cars began winning races. Up until the Great War in 1914 his cars developed from Type 15 to Type 20 all bearing the Bugatti hallmarks: Type 19 had a 5 liter, 4 cylinder engine, 90/100 hp and a top speed of 150 km/h at 2,800 RPM.
During the war Bugatti worked on aeroplane engines.

After World War 1 Ettore Bugatti returned to his factory in Molsheim and his true role in life, making racing cars; producing Bugattis Type 22 and 23 'Pur Sang'. To finance his factory in the post war years, Bugatti sold licenses for his cars to other manufacturers: Dialto in Italy, Crossley in Great Britain and Rabag in Germany.

The famous Bugatti Type 35 was based on the earlier Type 30, an unusual cigar shaped car which gained honours in many races but broke down in the relentless Indianapolis 500.

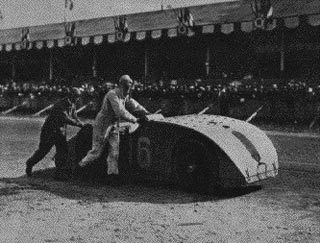

Bugatti TankIn 1923 Ettore Bugatti entered four cars in the French Grand Prix whose body shapes were based on an aeroplane wing, people quickly nicknamed the cars the Bugatti Tanks.

The Type 35, designed and produced in 1923/24 stands as a testament to Bugatti engineering. One of the most beautiful cars ever made it was also one of the most successful, winning over 2000 races.
Type 37 with a 1.5 liter engine was a typical hill climber and another winner from the Bugatti stable.
The best performances in Grand Prix racing for Ettore Bugatti's cars came with the advent of Type 51, an unfussy  car and extremely rugged with a massive 5 liter engine under the bonnet.

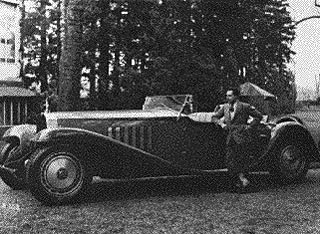

Bugatti royale Adjacent to the Bugatti factory was a small inn and guest house, called naturally the 'Pur Sang' where wealthy clients stayed when visiting Molsheim to pick up their cars; the guest list read like a Who's Who of the World's royalty.
Throughout the world everyone had heard of and wanted a Bugatti. But Ettore Bugatti was a purist and didn't think like an industrial tycoon and would not sell his cars to just anyone; when King Zog of Albania wanted to buy one, Ettore didn't allow it. As Bugatti put it," The man's table manners are beyond belief".

In 1932, Type 53 was a four wheel drive racing car, a complete innovation; it sported independent front wheel suspension and the 4.9 liter, Type 50 engine, the 300 hp it produced was transmitted over three differentials. Two cars were manufactured and they were only used in tough hill climbs.
With an engine capacity of 4.9 liters, Type 54 didn't perform as well as it may have done, six cars were built between 1931 and 1934 and they lacked the competitive edge.
Likewise the Type 59 fell short of Bugatti's expectations.

Jean Bugatti, Ettore's son, took an active part in his fathers business and loved motor racing. Although he was not allowed to compete, on account of his reckless driving, Jean could be found at most racing events giving the drivers instructions. Unfortunately he was killed in an accident whilst testing the Type 59.

Ettore Bugatti died in 1947, aged 66. After his death the Bugatti works continued to build excellent cars but they missed the genius of their creator. The last racing car, Type 251, designed by the famous Alfa and Ferrari designer Giachino Colombo, was produced between 1955 and 1956. The Type 251 project was disabled by financial difficulties and the Bugatti factories in Molsheim had to close their doors forever on their glorious past.
Ettore Bugatti left the world a heritage of automotive design, innovation and excitement never before matched by any car manufacturer.

Technical specifications

Production volume 200 cars



Type 35

Type 35A

Type 35B

Type 35C

Type 35 T

Years

1924-27

1926-29

1927-30

1927-30

1926-30

Engine 2 blocks

1991cc

1991cc

2261cc

1991cc

2261cc

Cyl

8 inline

8

8

8

8

Compressor

-

-

1 Roots

1 Roots



Bore

60mm

60mm

60mm

60mm

60mm

Stroke

88mm

88mm

100mm

88mm

100mm

Horse power

95

75

140





at RPM

5000

4000

5000

5500

5000

Valves



2 intake 1 outlet

Camshaft

one overhead camshaft driven by king pin

Cranksh. bearing

5

3

5

5

5

Cooling

water with water pump





Ignition

Magnet

Battery

Magnet

Magnet

Magnet

Carburettors

2 Solex

2 Zenith

1 Zenith

1 Zenith

2 Solex

Clutch

wet

lamellen

lamellen

lamellen

lamellen

Suspension

1/2 and 1/4 elliptic blades

Brakes

mechanical on four wheels, hand brake on rear wheels

Wheels

aluminium

wire

aluminium wide spoke

Wheelbase

2400 mm









Track

1200 mm









overall length

3700 mm









Tyres

710x90

27x440

27x440

28x495

27x440

Topspeed

190 km/h

160 km/h

215 km/h

205 km/h

200 km/h

Consumption

15 l/100

14 l/100





16 l/100

Weight

750 kg

750 kg







Price

20.400 Mk

13.300 Mk

28.800 Mk

25.400 Mk



Production volume 300 cars



Type 37

Type 37A

Years

1926-30

1927-32

Engine 1 block

1496cc

1496cc

Cyl

4 inline

4

Compressor

-

1 Roots

Bore

69mm

69mm

Stroke

100mm

100mm

Horse power

70

100

at RPM

4500

5000

Valves

2 intake 1 outlet

Camshaft

one overhead camshaft driven by king pin

Cranksh. bearing

5

5

Cooling

water with water pump

Ignition

Battery

Magnet

Carburettors

1 Solex or Zenith

Clutch

lamellen

lamellen

Suspension

1/2 and 1/4 elliptic blades

Brakes

mechanical on four wheels, hand brake on rear wheels

Wheels

wire

wire

Wheelbase

2400 mm



Track

1200 mm



overall length

3700 mm



Tyres

27x440

24x440

Topspeed

150 km/h

170-195 km/h

Consumption

12l/100

14l/100

Weight

750 kg

750 kg

Production volume 40 cars



Type 51

Type 51A

Type 51C

Years

1931-35

1931-35

1932-35

Engine 1 block

2261cc

1492cc

1990cc

Cyl

8 inline

8

8

Compressor

1 Roots





Bore

60mm

60mm

60mm

Stroke

100mm

66mm

88mm

Horse power

190

100



at RPM

5200





Valves

2 intake 1 outlet





Camshaft

two overhead camshafts

Cranksh. bearing

5

5

5

Cooling

water with water pump

Ignition

Magnet

Magnet

Magnet

Carburettors

Zenith





Clutch

lamellen

lamellen



Suspension

1/2 and 1/4 elliptic blades

Brakes

mechanical





Wheels

aluminium wide spokes

Wheelbase

2400 mm





Spur

1200 mm





overall length

3700 mm





Tyres

29x5





Topspeed

230 km/h





Consumption







Weight

750 kg

750 kg

750 kg

Early pilots for Bugatti were :
Meo Costantini, Count Czaykowski, Baron Philippe de Rothschild, Robert Benoist, Charles Grover ‘Williams’, Freddy Zehender, Philippe Etancelin and Louis Chiron.
In 1933 Meo Costantini was team manager and René Dreyfus joined the team then consisting of Robert Benoist, Marcel Lehoux, Philippe Etancelin, Willie Williams, Albert Divo and Achille Varzi.
In 1934 the great Tazio Nuvolari joined, while also Tonino Brivio and Jean Pierre Wimille were added to the Bugatti team.
Chiron won Monaco in 31 and Varzi the GP of Tunis and the GP of France, 2nd and 3rd place in GP of Germany and winner of GP of Tchechoslovakia. Then Varzi in 33 in Monaco, Lehoux in Monza and 1st, 2nd and 3rd place in GP of Dieppe.

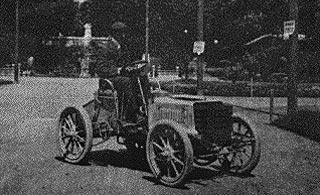

First Bugatti build car
First Bugatti build car

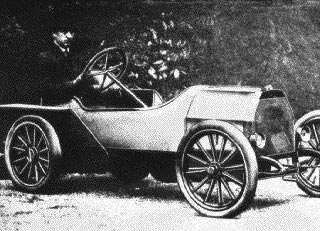

First Bugatti 'Pur Sang'
First Bugatti 'Pur Sang'

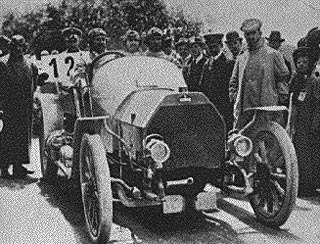

Deutz - Bugatti

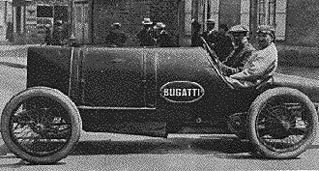

Bugatti Type 19
Bugatti Type 19

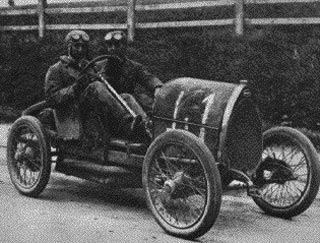

Bugatti Type 22 Brescia
Bugatti Type 22 Brescia

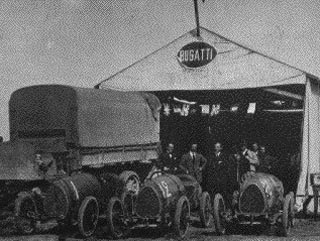

Type 22 line up

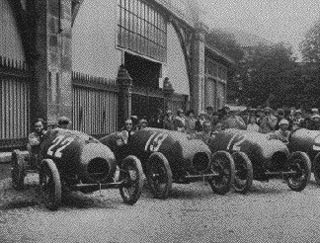

Bugatti type 30
Bugatti type 30 (cigars)

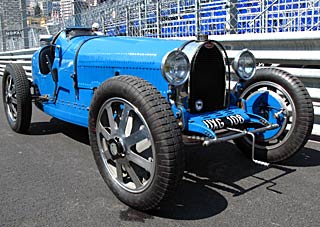

Type 35

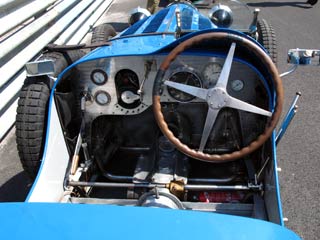

Typ 35 Dashboard and footwell

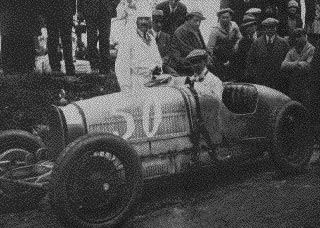

type 37 with Rene Dreyfus
type 37 with Rene Dreyfus at the wheel

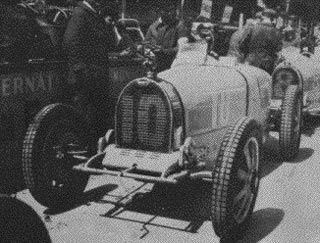

Type 51

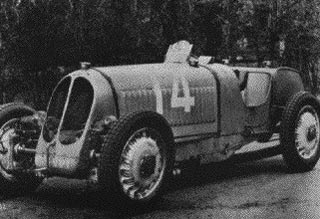

Bugatti type 53 four wheel drive
Bugatti type 53 four wheel drive

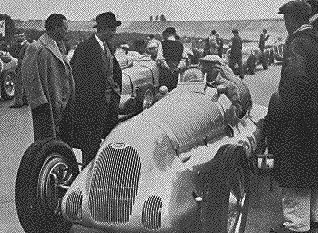

Type 59 with Jean Bugatti
Type 59 with Jean Bugatti

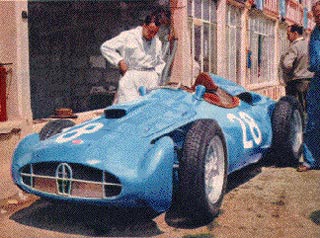

Bugatti 251 a Colombo design
Bugatti 251 a Colombo design

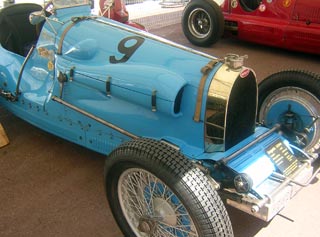

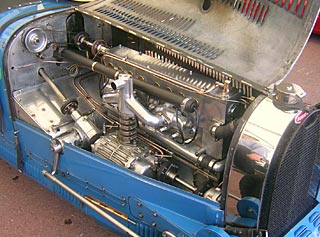

Bugatti radiatorBugatti 35B EngineBugatti 35B

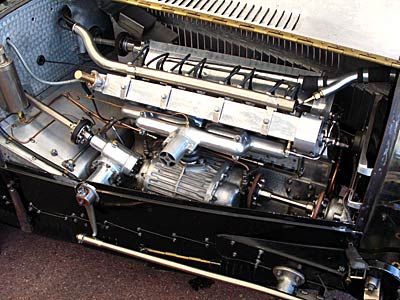

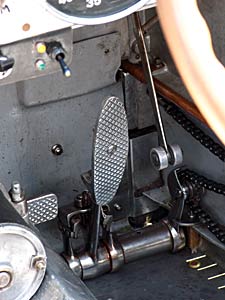

Bugatti Typ 35 8 cylinder engine and Typ 35 pedal set-up
